- 【Precise filling control】This filling machine uses a microcomputer to control the pump's working time, speed and other factors to achieve a liquid filling device with accurate output and small repeat error. measurement range: 3-99999ml, arbitrary choice.
- 【Corrosion Resistance】With oil resistance, heat resistance, weak acid resistance, weak alkali resistance, corrosion resistance
- 【 High-quality material】The product uses a self-priming pump, which can run continuously for a long time with low noise
- 【Automatic heat dissipation protection】let you operate with more confidence., safer, longer lasting, Small size, easy to clean and operate.
- 【Used for】widely used in food, beverage, pharmaceutical, chemical, oil, cosmetics and other industries.suitable for the filling of ordinary liquid and viscous liquid.

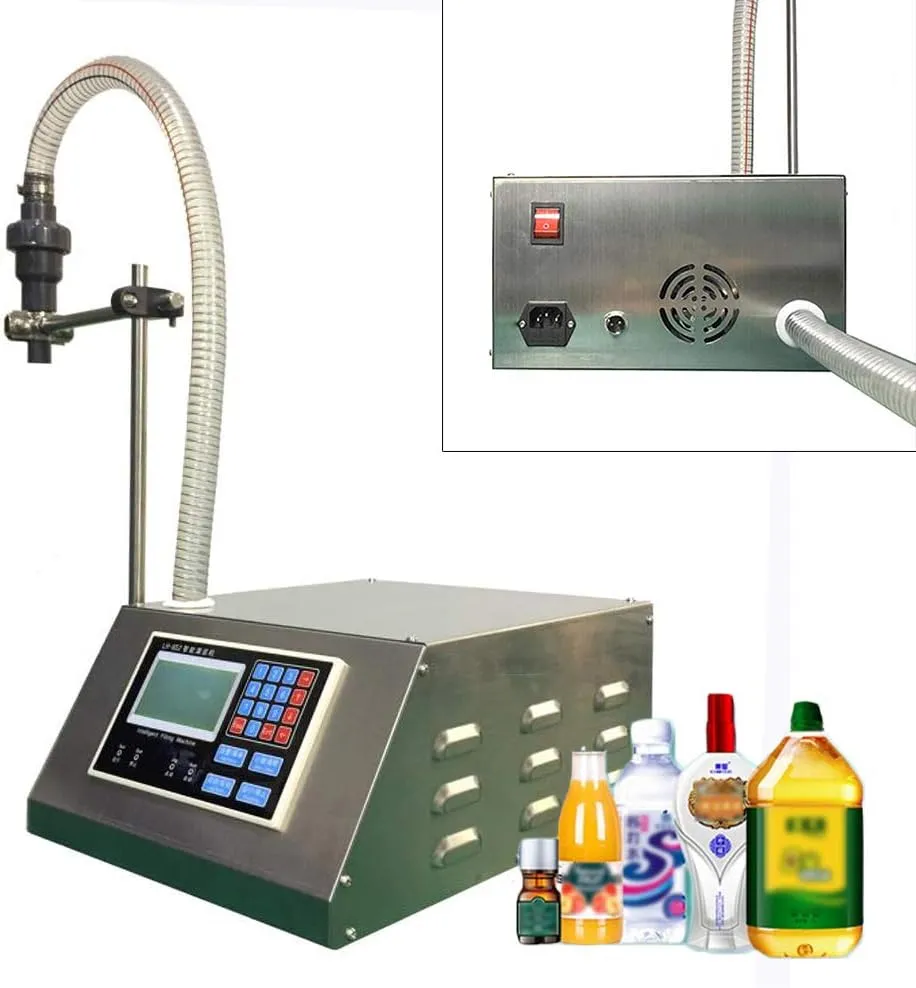

Product parameters:
Model: LH-852
Voltage: AC110v
Rated power: 210w
Filling range: 3-99999ml
Unit of measurement: s/g/kg/ml/l
Minimum filling: 50g
Counting range: 1-99999
Filling speed: 17L/min (water)
Filling error: ±1%
Vacuum: 2m
Nozzle: outer diameter 20mm
Discharge tube: outer diameter 25mm/length 0.6m
Feeding tube: outer diameter 25mm/length 2.0m
Liquid temperature: ≤60℃
Host specification: 360*300*156mm
Machine weight: 8.5kg
Viscous liquid: applicable
Ordinary liquid filling: 17L/min
Viscous liquid filling: about 7L/min
1. High filling accuracy: deviation is less than 1%, and with deviation correction function
2. High filling speed: 17 liters/minute (water), the speed can be adjusted 1-99%
3. High degree of intelligence: There are automatic and inching mode, with filling parameter learning function
4. Various quantitative units: time: S weight: g, kg volume: ml, L
5. Single-point calibration: calibrate and replace the weight of the peer product as much as possible. Re-calibration is required for the filling volume. Once our products are calibrated, all weights can be accurately filled!
6. Full numeric keyboard: modify the parameters and input the numbers directly, without pressing the plus and minus keys to slowly add or subtract
7. Chinese and English bilingual menu
packing list:
Main unit*1, bracket*1, power cord*1, foot switch*1, hexagon wrench*1, instruction manual*1
